Detalles de los productos

Created with Pixso. En casa. Created with Pixso. Productos Created with Pixso.
Panel de visualización LCD TFT
Created with Pixso.

7 Inch IPS Screen TFT LCD Display with 1024 RGB x 600 Dots High Resolution

7 Inch IPS Screen TFT LCD Display with 1024 RGB x 600 Dots High Resolution

7 Inch IPS Screen TFT LCD Display with 1024 RGB x 600 Dots High Resolution

Nombre De La Marca: Genyu
Cuota De Producción: 1
Precio: $8.50-9.90
Información detallada
Descripción del producto
Información detallada
Lugar de origen:
Cantón, China
Tamaño de pantalla:
7,0 pulgadas
Cuenta del pixel:
1024 RGB × 600 puntos
Modo de visualización:
Negro normal, IPS
Temperatura de funcionamiento:
-10~+60℃
Temperatura de almacenamiento:
-20~+70℃
Tipo de interfaz:
RGB, 50 pines
Tipo de retroiluminación:
LEDs blancos, paralelas
Dimensiones del contorno:
165,0x100x3,5mm
Área activa:
154,21x85,92mm
Luminancia:
180 CD/m2
Tipo de conector:
COG+FPC
tipo de panel:
TFT
Ángulo de visión:
Gratis
espesor del módulo:
3,5 milímetros
Tecnología de visualización:
Transmisivo
Resaltar:

7 Inch TFT LCD Display

,

1024 RGB x 600 Dots TFT LCD Panel

,

IPS Screen TFT LCD Screen

Descripción del producto
7-Inch High Resolution IPS TFT LCD Display
7-inch IPS screen with RGB interface, 50-pin connector, and 1024 RGB×600 dot-matrix resolution for superior display quality.
Technical Specifications
Parameter Specification
Panel Size 7.0 inches
Number of Pixels 1024 RGB × 600 Dots
Display Mode Normally Black, Transmissive
Interface RGB, 50 pins
Operating Temperature -10°C to +60°C
Storage Temperature -20°C to +70°C
Connector COG+FPC, 50 pin
Module Size 165(W) × 100(H) × 3.5(D) mm
Active Area 154.2144(H) × 85.92(V) mm
Luminance 180 cd/m²

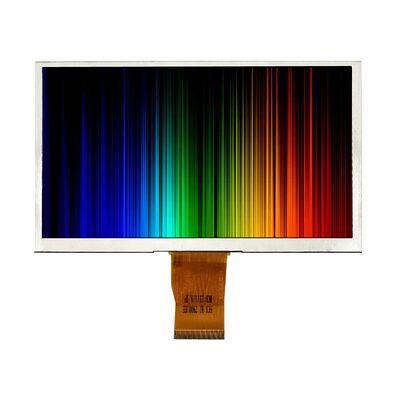

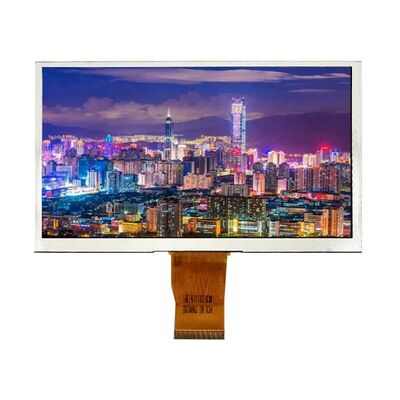

Product Images
7 Inch IPS Screen TFT LCD Display with 1024 RGB x 600 Dots High Resolution 0 7 Inch IPS Screen TFT LCD Display with 1024 RGB x 600 Dots High Resolution 1

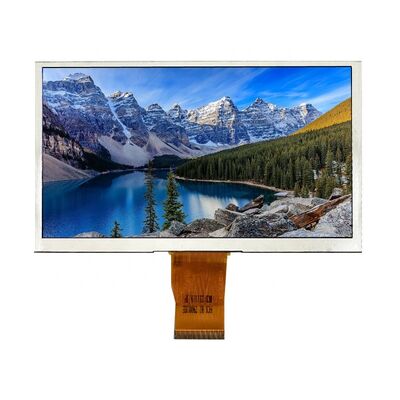

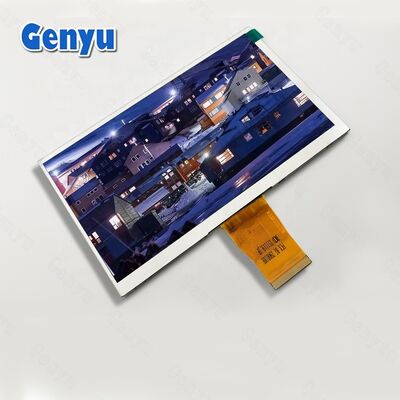

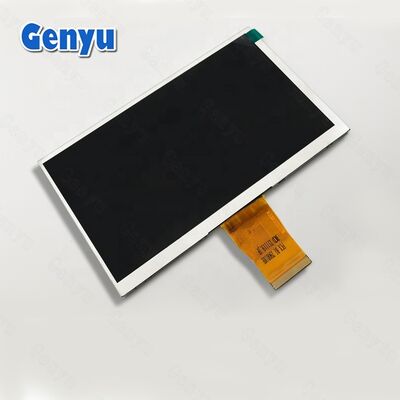

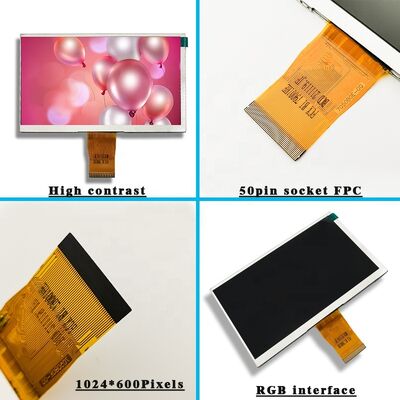

Alternative 7-Inch TFT Display Designs
Available with HDMI, RGB, and LVDS interfaces to suit various application requirements.
7 Inch IPS Screen TFT LCD Display with 1024 RGB x 600 Dots High Resolution 2 7 Inch IPS Screen TFT LCD Display with 1024 RGB x 600 Dots High Resolution 3 7 Inch IPS Screen TFT LCD Display with 1024 RGB x 600 Dots High Resolution 4
Company Overview
7 Inch IPS Screen TFT LCD Display with 1024 RGB x 600 Dots High Resolution 5 7 Inch IPS Screen TFT LCD Display with 1024 RGB x 600 Dots High Resolution 6 7 Inch IPS Screen TFT LCD Display with 1024 RGB x 600 Dots High Resolution 7
Our Services & Advantages
7 Inch IPS Screen TFT LCD Display with 1024 RGB x 600 Dots High Resolution 8
  • Professional Technical Support: 24-hour service availability
  • Strict Quality Control: Double testing procedures
  • Large Daily Production: Faster lead times
  • Factory Direct Supply: Competitive pricing
7 Inch IPS Screen TFT LCD Display with 1024 RGB x 600 Dots High Resolution 9 7 Inch IPS Screen TFT LCD Display with 1024 RGB x 600 Dots High Resolution 10 7 Inch IPS Screen TFT LCD Display with 1024 RGB x 600 Dots High Resolution 11 7 Inch IPS Screen TFT LCD Display with 1024 RGB x 600 Dots High Resolution 12
Packaging & Shipping
Payment Methods
T/T, Western Union, PayPal, and other accepted payment methods.
Delivery Timeline
Items shipped within 3 working days after payment confirmation:
  • DHL/UPS/FedEx: 5-7 working days
  • EMS/POSTNL: 15-20 working days
Packaging Standards
Electrostatic bags, anti-static trays, plastic pallets, air bubble film, and suitable carton boxes designed to withstand rough handling during transit.
7 Inch IPS Screen TFT LCD Display with 1024 RGB x 600 Dots High Resolution 13
Frequently Asked Questions
Company Type
Q: Are you a manufacturer or trading company?
A: We are a factory located in Shenzhen and Jiangxi, specializing in TN, HTN, STN, FSTN, VA monochrome LCD, Micro OLED Screen, Color TFT Display Panels, LED Backlights, and LCD Modules.
Samples
Q: Will you offer a free sample?
A: For first cooperation, samples are charged with amount returned at mass order stage. For regular cooperation, samples can be free.
Delivery Time
Q: What is the delivery time?
A: Sample orders: 2-3 weeks. Mass production: 4-6 weeks.
Customization
Q: Can you customize the LCD or touch screen?
A: Yes, we provide custom services. For LCD displays: backlight brightness and FPC cable customization. For touch screens: complete panel customization including color, shape, cover thickness, and more.
Applications
Q: Which applications are your products mainly used for?
A: Embedded systems, intercom systems, biometrics, HMI, smart home, robotics, handheld PDA, aftermarket automotive, and more.
