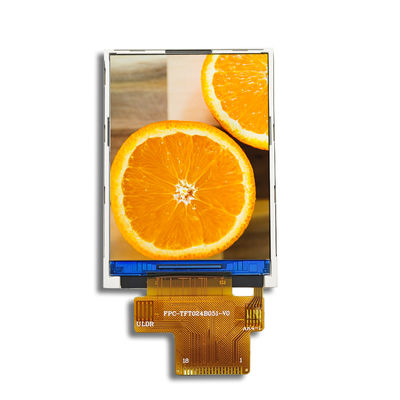

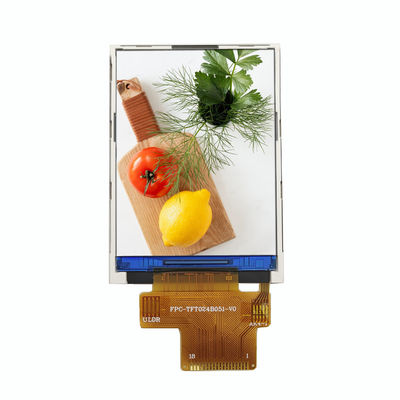

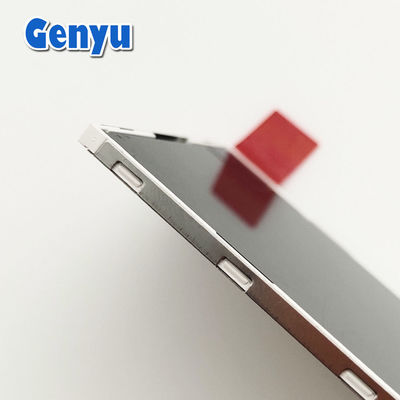

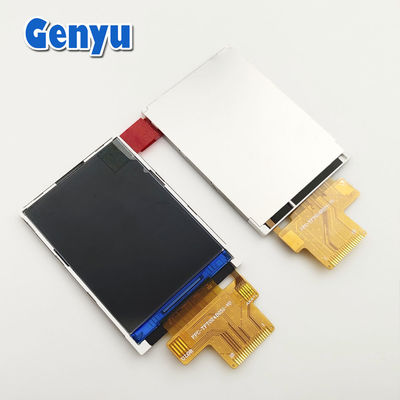

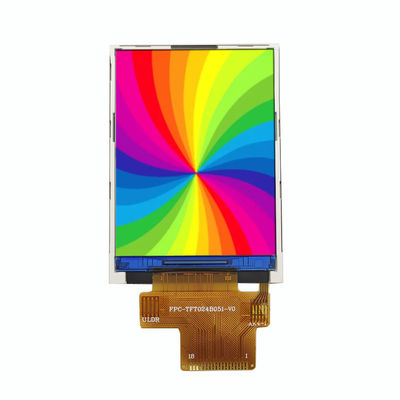

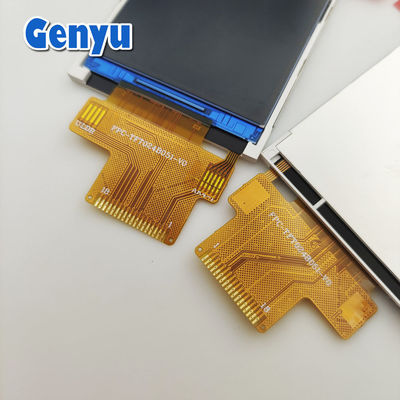

2.4 Inch TFT LCD Display with COG FPC Connector 240x320 Dots RGB Color 262K 18 Pins SPI Interface 320*240 and Performance

Nombre De La Marca:	Genyu
Cuota De Producción:	1000 piezas
Precio:	$2.30/pieces 1000-4999 pieces

Información detallada

Descripción del producto

Información detallada

Lugar de origen:

Guangdong, China

Tipo:

Tft

Tamaño de pantalla:

2.4 pulgadas

Tipo de proveedor:

fabricante

Tipo de visualización:

Exhibición de TFT LCD de 2,4 pulgadas

Resolución:

240 puntos RGBX320

Dirección de observación:

TN/IPS

Controller IC:

NV3030A, ST7789, compatible

Temperatura de funcionamiento:

-20 ℃ ~+70 ℃

Temperatura de almacenamiento:

-30°C~+80°C

Interfaz:

Serial de 4 líneas, SPI

Conector:

Cog+FPC, 18 pines

Luminancia:

250 Cd/m2

Iluminar desde el fondo:

4 PC, LED blancos

Resaltar:

262K TFT LCD Display

240x320 TFT LCD Display

COG FPC Connector TFT LCD Display

Descripción del producto

2.4" TFT IPS Screen 240x320 Dots RGB Color 262K 18 pins SPI Interface 320*240 2.4 Inch Tft LCD Display

Product Overviews

1	Brand Name	Genyu
2	Model Number	TFT024B051
3	Display Type	2.4 TFT
4	Luminance	250 cd/m2
5	Viewing Direction	IPS, Free Angle
6	Dot Matrix	240 RGB*320 Dots
7	Outline Dimension	42.72(W)x60.26(H)x2.4(D) mm
8	AA Size	36.72(W)*48.96(H) mm
9	Operating Temperature	-20~+70℃
10	Storage Temperature	-30~+80℃
11	Drive IC	NV3030A, compatible
12	Connector	COG+FPC, 18 PIN
13	Interface	SPI
14	Backlight	4 White LEDs
15	ROHS compliant

2.4 Inch TFT LCD Display with COG FPC Connector 240x320 Dots RGB Color 262K 18 Pins SPI Interface 320*240 and Performance 0

2.4 Inch TFT LCD Display with COG FPC Connector 240x320 Dots RGB Color 262K 18 Pins SPI Interface 320*240 and Performance 1

2.4 Inch TFT LCD Display with COG FPC Connector 240x320 Dots RGB Color 262K 18 Pins SPI Interface 320*240 and Performance 2

Main Products

More Color TFT LCD Display maybe you will like:

LCD Sizes: 0.96", 1.0", 1.3", 1.44", 1.54", 1.77", 2.0", 2.2", 2.4", 2.8", 3.2", 3.5", 4.3", 5.0", 7.0";
Interface: SPI, I2C, Parallel(8/16/24 bits), RGB
Customized Parts: FPC(number of pins), With CTP/RTP or not...
LCD Resolutions: 80x160, 128x128, 128x160, 240x240, 240x320, 320x480, 800x480 dots, etc.

2.4 Inch TFT LCD Display with COG FPC Connector 240x320 Dots RGB Color 262K 18 Pins SPI Interface 320*240 and Performance 3

Company Information

Our Services

Our Advantages:

1. Professional Technical Support, 24 Hours Service

2. Strict Quality Control, Double Testing

3. Large Daily Production, Faster Leading Time

4. Factory Directly Supply, Competitive Price

2.4 Inch TFT LCD Display with COG FPC Connector 240x320 Dots RGB Color 262K 18 Pins SPI Interface 320*240 and Performance 8

2.4 Inch TFT LCD Display with COG FPC Connector 240x320 Dots RGB Color 262K 18 Pins SPI Interface 320*240 and Performance 9

2.4 Inch TFT LCD Display with COG FPC Connector 240x320 Dots RGB Color 262K 18 Pins SPI Interface 320*240 and Performance 10

Packaging & Shipping

Payment
T/T, Western Union. Paypal and etc...

Delivery
Items will be shipped within 3 working days after payment is received.

By DHL/UPS/FedEx: about 5-7 working days.
By EMS/POSTNL: about 15-20 working days.

Packaging

1. Electrostatic Bag/ Anti-static Trays/ Plastic Pallet/ Air Bubble Film...

2. Suitable Carton Boxes.

The packing is able to withstand rough handling.

2.4 Inch TFT LCD Display with COG FPC Connector 240x320 Dots RGB Color 262K 18 Pins SPI Interface 320*240 and Performance 11

FAQ1

1. Q: Are you a manufactory or trade company?

A. We are a factory located in Shenzhen and Jiangxi, which specializes in TN, HTN, STN, FSTN, VA monochrome LCD, Micro OLED Screen, Color TFT Display Panels, LED Backlights, and LCD Modules.

2. Q: Will you offer a free sample?

A: For the first cooperation, samples will be charged, and the amount will be returned at the mass order stage.

In regular cooperation, samples can be free.

3. Q: What is the delivery time?

A: For sample order: 2-3 weeks. For mass production: 4-6 weeks.

4. Q: Can you custom the LCD or touch screen for me?

A: Yes, we can provide custom services.

For the LCD display, backlight brightness and FPC cable can be customized.

For the touch screen, we can customize the whole touch panel, such as the color, shape, cover thickness, and so on according to the customer's requirements.

5. Q: Which applications your products are mainly used for?

A: Embedded system, Intercom system, Biometrix, HMI, Smart home, Robert, Hand-held PDA, After market automotive and etc.
