Module Size 54.48x84.71x3.2 mm 3.5 inch TFT LCD Touch Screen with ST7796 Drive IC and 40 Pin Parallel/SPI Interface

Nombre De La Marca:	Genyu
Cuota De Producción:	10 piezas
Precio:	$5.70/pieces 10-999 pieces

Información detallada

Descripción del producto

Información detallada

Lugar de origen:

Guangdong, China

Tipo:

Tft

Tamaño de pantalla:

LCD TFT de 3.5 pulgadas

Tipo de proveedor:

fabricante

Tipo de luz de fondo:

Resolución:

/, Pantalla 480x320 TFT

brillo:

Temperatura de funcionamiento:

Marca:

Tipo de visualización:

Tipo de montaje:

Tamaño de pantalla:

Interfaz de comunicación:

IC del conductor:

Tamaño:

Exhibición de TFT de 3,5 pulgadas

Impulso:

ST7796

tamaño del módulo:

54.48x84.71x3.2 mm

Área activa:

48.96x73.44 mm

Voltaje de la fuente de alimentación:

2.8V

Interfaz:

Interfaz SPI de 16/18 bits SPI, SPI

Artículo:

Pantalla táctil LCD TFT de 3.5 pulgadas 480x320

Aplicación:

electrodomésticos inteligentes

Panel táctil:

Toque resistivo

Resaltar:

ST7796 TFT LCD Touch Screen

SPI Interface TFT LCD Touch Screen

3.5 inch TFT LCD Touch Screen

Descripción del producto

3.5 inch tft lcd touch screen 480x320 tft screen Drive IC ST7796 40 pin 8/16 Bit Parallel SPI lcd display 3.5 TFT LCD

Module Size 54.48x84.71x3.2 mm 3.5 inch TFT LCD Touch Screen with ST7796 Drive IC and 40 Pin Parallel/SPI Interface 0

Module Size 54.48x84.71x3.2 mm 3.5 inch TFT LCD Touch Screen with ST7796 Drive IC and 40 Pin Parallel/SPI Interface 1

Product Description

Brand Name: Genyu

Model Number: GY-TFT035F056 (with )

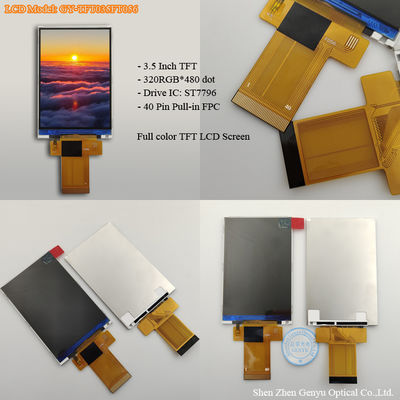

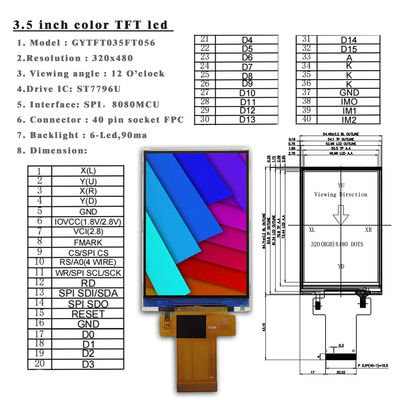

1. Features

TFT Size	3.5 inch	Interface	6bit/8bit/SPI
Display Type	Full color TFT LCD display	Viewing Angle	12"00
Resolution	320RGBx480Pixel	Drive IC	ST7796/ILI9488
Luminance	250 cd/m2	Voltage	2.8V
Operating Tem.	-20℃~+70℃	Connection method	40 PIN
Storage Tem.	-30℃~+80℃	LCD Size	54.4 x 84.7 x 3.2 mm
Backlight	6 LED/90mA	Active Area	48.9 x 73.4 mm

Full color 3.5 inch tft lcd touch screen 480x320 ST7796 40 pin 8/16 Bit Parallel SPI lcd display 3.5 TFT LCD

Module Size 54.48x84.71x3.2 mm 3.5 inch TFT LCD Touch Screen with ST7796 Drive IC and 40 Pin Parallel/SPI Interface 2

Module Size 54.48x84.71x3.2 mm 3.5 inch TFT LCD Touch Screen with ST7796 Drive IC and 40 Pin Parallel/SPI Interface 3

Module Size 54.48x84.71x3.2 mm 3.5 inch TFT LCD Touch Screen with ST7796 Drive IC and 40 Pin Parallel/SPI Interface 4

Module Size 54.48x84.71x3.2 mm 3.5 inch TFT LCD Touch Screen with ST7796 Drive IC and 40 Pin Parallel/SPI Interface 5

Module Size 54.48x84.71x3.2 mm 3.5 inch TFT LCD Touch Screen with ST7796 Drive IC and 40 Pin Parallel/SPI Interface 6

Module Size 54.48x84.71x3.2 mm 3.5 inch TFT LCD Touch Screen with ST7796 Drive IC and 40 Pin Parallel/SPI Interface 7

Module Size 54.48x84.71x3.2 mm 3.5 inch TFT LCD Touch Screen with ST7796 Drive IC and 40 Pin Parallel/SPI Interface 8

Module Size 54.48x84.71x3.2 mm 3.5 inch TFT LCD Touch Screen with ST7796 Drive IC and 40 Pin Parallel/SPI Interface 9

(320xRGBx480) 3.5 inch tft lcd Module Video With Resistance Touch Pane

Packaging & Shipping

Payment
Please contact us before you make payment.
Payment terms: T/T, Western Union. Paypal....

Delivery
Items will be shipped within 3 working days on payment received.

By DHL/UPS/FedEx/TNT: about 2-5 working days.
By EMS: about 7-10 working days.
By CPAM/HKPAM: about 10-30 working days.

Packaging
1. Anti-static bag or Bubble bag; (For samples)
2. Plastic pallet;
3. Carton box.
