Genyu 1.83 inch TFT LCD Display with 240x284 Resolution and SPI Interface for High Clarity

Nombre De La Marca:	Genyu
Cuota De Producción:	1000
Precio:	$1.50-1.60

Información detallada

Descripción del producto

Información detallada

Lugar de origen:

Cantón, China

Tipo de pantalla:

TFT

Tamaño de pantalla:

1,83 pulgadas

Resolución:

240x284 puntos

Ver dirección:

Todo

Controlador IC:

NV3030B-03

Tipo de interfaz:

SPI

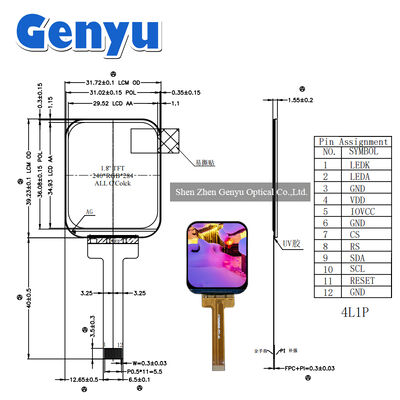

Tamaño del módulo:

50x39,23x1,55mm

Área activa:

29,52x34,93 milímetros

Temperatura de funcionamiento:

-20~+70℃

Tipo de retroiluminación:

3 LED, paralelo

Voltaje de funcionamiento:

2.8 ~ 3.3V

Temperatura de almacenamiento:

-30 ~+80 ℃

Conector de FPC:

12 pines, tipo ZIF

LEDs de luz de fondo:

3 LED, blanco

Tipo LCD:

IPS

Resaltar:

1.83 inch TFT LCD Display

240x284 Resolution TFT Screen

SPI Interface LCD Module

Descripción del producto

Genyu 1.83 inch TFT Display

High-quality 1.83 inch TFT LCD screen with NV3030B driver IC, featuring 240x284 resolution and SPI interface with 12-pin FPC connector.

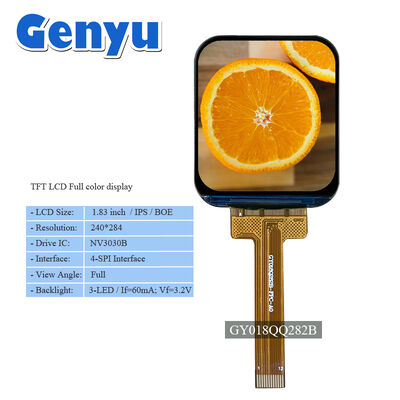

Technical Specifications

Parameter	Specification
Product Name	1.83 inch TFT LCD Screen Display
LCD Type	IPS
Resolution	240 RGB × 284 DOTS
Operating Temperature	-20°C to +70°C
Storage Temperature	-30°C to +80°C
FPC Connector	12 pins, ZIF type
Driver IC (COG)	NV3030B-03
Interface	SPI
Backlight	3 LEDs, White

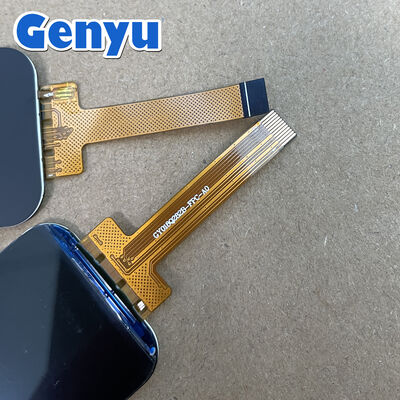

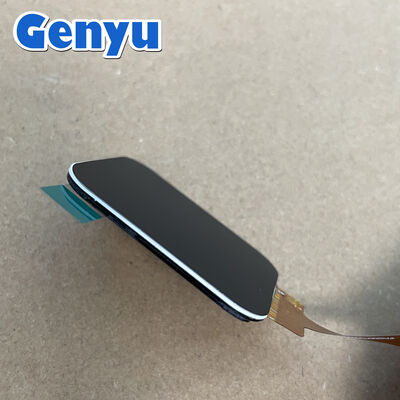

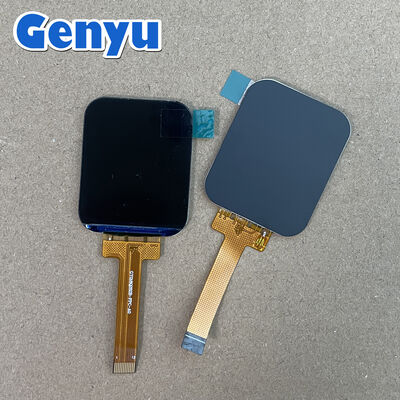

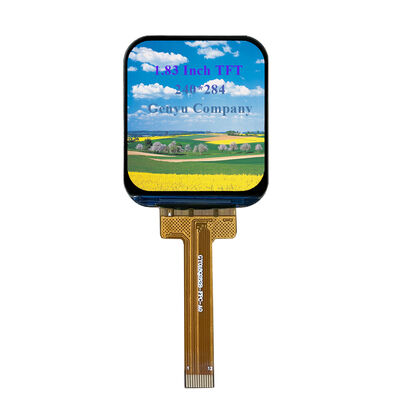

Product Images

Similar TFT Display Products

We specialize in small to medium size TFT LCD displays ranging from 0.96 inch to 7 inch, including:

0.96", 1.06", 1.14", 1.28", 1.3", 1.44", 1.54", 1.77", 1.83", 1.99", 2.0", 2.2", 2.4", 2.8", 2.95", 3.13", 3.2", 3.5", 3.97", 4.3", 4.45", 5", 5.5", 7" and more.

Company Information

Genyu Technology (H K) Limited

Shen Zhen Genyu Optical Co., Ltd

Our Services

Technical Support: All products include detailed instructions and procedures. Technical support is available throughout the development process.
Quality Assurance: Every product undergoes aging tests and 100% visual and electrical inspection before shipment.
Product Upgrades: We notify clients in advance about product upgrades, ensuring compatibility with previous versions.
Warranty: 12-month warranty period on all products.

Packaging & Shipping

Payment Methods

T/T, Western Union, PayPal, and other payment options available.

Delivery

Items ship within 3 working days after payment confirmation.

DHL/UPS/FedEx: 5-7 working days
EMS/POSTNL: 15-20 working days

Packaging

Professional packaging using electrostatic bags, anti-static trays, plastic pallets, air bubble film, and sturdy carton boxes designed to withstand rough handling during transit.

Frequently Asked Questions

1. Are you a manufacturer or trading company?

We are a factory located in Shenzhen and Jiangxi, specializing in TN, HTN, STN, FSTN, VA monochrome LCD, Micro OLED Screen, Color TFT Display Panels, LED Backlights, and LCD Modules.

2. Do you offer free samples?

For first-time cooperation, samples are charged but the amount is refunded during mass order. For regular customers, samples can be provided free of charge.

3. What is your delivery time?

Sample orders: 2-3 weeks. Mass production: 4-6 weeks.

4. Can you customize LCD or touch screens?

Yes, we provide comprehensive customization services. For LCD displays, we can customize backlight brightness and FPC cables. For touch screens, we can customize the entire panel including color, shape, cover thickness, and other specifications according to your requirements.

5. What applications are your products used for?

Our displays are used in embedded systems, intercom systems, biometric devices, HMI interfaces, smart home applications, robotics, handheld PDAs, aftermarket automotive systems, and more.
