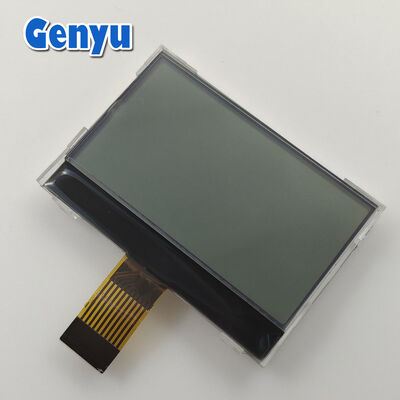

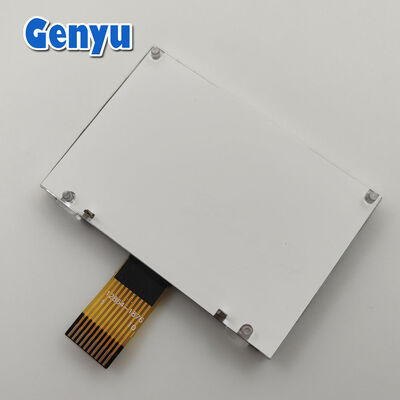

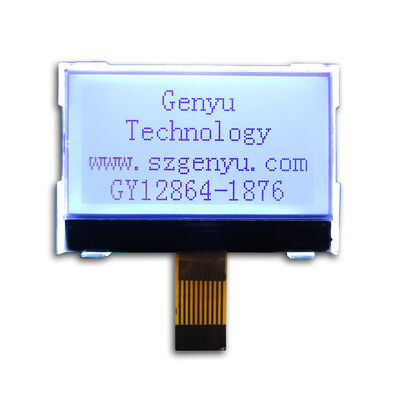

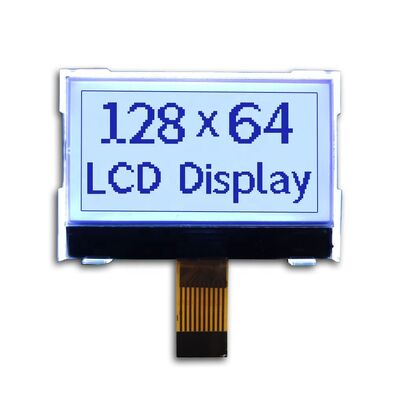

COG LCD Display with SPI Interface and ST7567 Drive IC for Handheld Devices Featuring White or Blue Backlight

Nombre De La Marca:	Genyu
Cuota De Producción:	1
Precio:	$1.90-2.40

Información detallada

Descripción del producto

Información detallada

Lugar de origen:

Cantón, China

Display Type:

FSTN, Transmissive, Positive

Resolución:

128x64 puntos

Drive Method:

1/65 DUTY, 1/9 BAIS

Ángulo de visión:

6 en punto

Interfaz:

Interfaz SPI

Unidad IC:

ST7567

Module Size:

58.5*39.7*5.2 mm

Iluminar desde el fondo:

Blanco o azul

Viewing Area:

53.60*28.60 mm

Temperatura de trabajo:

-10~60°C

Temperatura de almacenamiento:

-20 ~ 70 °C

Tipo de conexión:

DIENTE + FPC

Power Supply:

Vop=8.2 V; Vdd=2.8V

Display Size:

2.15 Inches

Recuento de pines:

Resaltar:

SPI Interface COG LCD Display

ST7567 Drive IC FSTN Positive LCD

White or Blue Backlight 128x64 Dots LCD

Descripción del producto

COG LCD Display 128x64 Dots Screen with ST7567 Controller

High-quality FSTN positive LCD display with 128x64 dot matrix resolution, designed specifically for handheld devices and embedded applications.

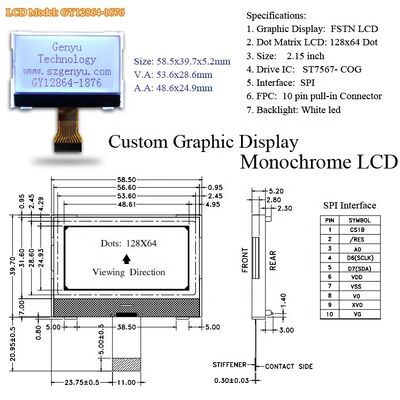

SPI Interface Pin Configuration

Pin	1	2	3	4	5	6	7	8	9	10
Symbol	CS1B	/RES	A0	D6(SCL)	D7(SDA)	VDD	VSS	V0	XV0	VG

Technical Specifications

Display Type: FSTN LCD screen, 128x64 dot matrix display
Technology: Transmissive LCD screen, Positive type
Interface: 4-wire SPI
Drive IC: ST7567 (COG - Chip On Glass)
Viewing Angle: 6 O'CLOCK
Power Supply: Vop=8.2V; Vdd=2.8V
Backlight Options: White or Blue LED

Physical Dimensions

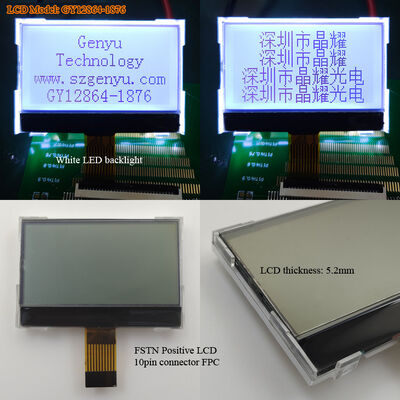

Structure: LCD + IC + FPC + BL

Module Size: 58.50×39.70×5.20 mm

Viewing Area: 53.60×28.60 mm

Working Temperature: -10°C to 60°C

Storage Temperature: -20°C to 70°C

Connection: COG + FPC

Need additional technical information? Require FPC connector pin diagrams or custom LCD layout design? Contact our technical team for assistance.

Product Models

GY12864-1876W: Positive LCD with White backlight
GY12864-1876B: Positive LCD with Blue backlight

Product Images

Related LCD Products

1.7 Inches 128×64 COG LCD: With PCB Board, FSTN Positive LCD Display, COB LCD 14pin UC1701 Drive IC, SPI interface
2.76 Inches 19264 LCD: FSTN Positive/Negative LCD Display, COG LCD 24 pin UC1604 Drive IC, SPI interface
2.7 Inches 12864 LCD: FSTN Positive/Negative LCD Display, COG LCD 24 pin UC1604 Drive IC, Blue or White backlight
1.46 Inches Small Size Screen: 128×64 dot matrix Graphic LCD, FSTN COG 14 pin connector, Black white Monochrome LCD Screen

Ordering & Support

Payment Terms

T/T, Western Union, Paypal. Please contact us before making payment.

Delivery Options

Items ship within 3 working days after payment confirmation.
DHL/UPS/FedEx/TNT: 2-5 working days
EMS: 7-10 working days
CPAM/HKPAM: 10-30 working days

Packaging

Anti-static bag or Bubble bag (for samples)
Plastic pallet
Carton box

For technical specifications, custom requirements, or volume pricing, contact our LCD specialists today.
